VPX Products


VPX Products: Backplanes

Dawn’s VPX backplanes are based on Gen3 VPX, VPX (VITA46), VPX REDI (VITA48), OpenVPX (VITA65) and VITA 68 VPX compliance, available in a wide range of profiles and topologies.

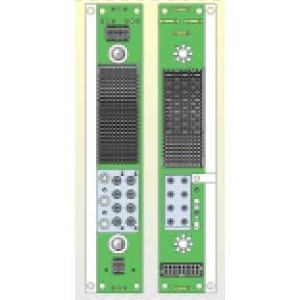

VPX-7997
VITA-65

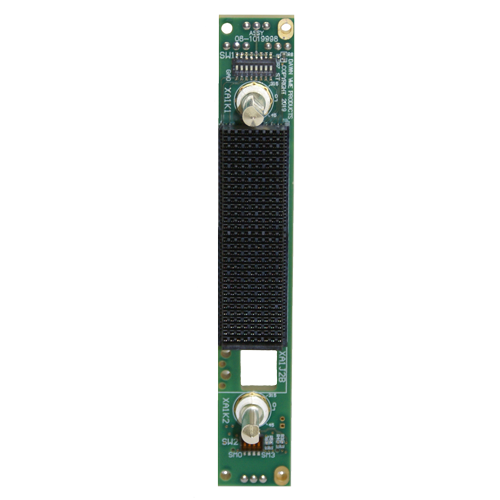

VPX-9998
Nano-RF

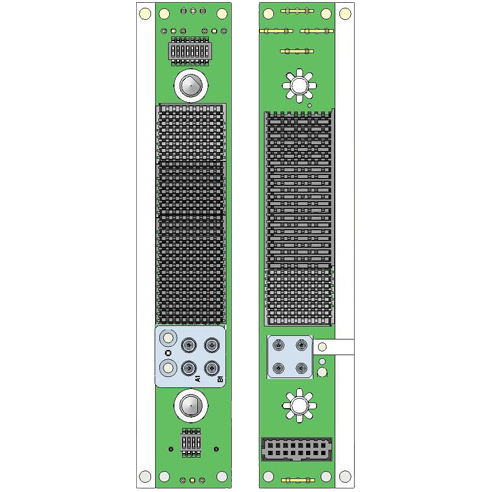

VPX-8467
VITA-67.1

VPX-8867
VITA-67.2

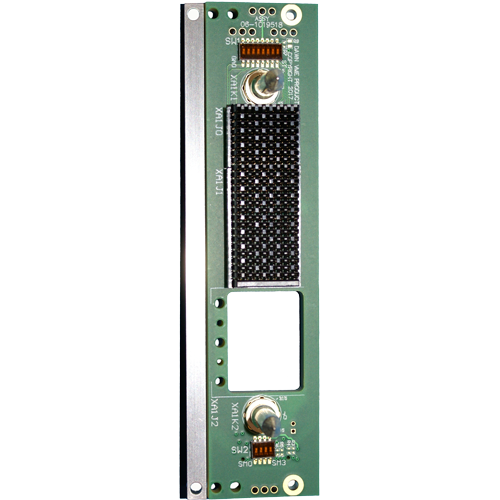

VPX-9518
VITA-67.3

VPX-6362
Power Supply BP

VPX-5987
Gen3 3U Open VPX

Backplanes

VPX-5908
Daisy Chain Fabric
on VPX J1 Rows 1-8

VPX-5948
PWR/GND/IPBM/
Utility Plane

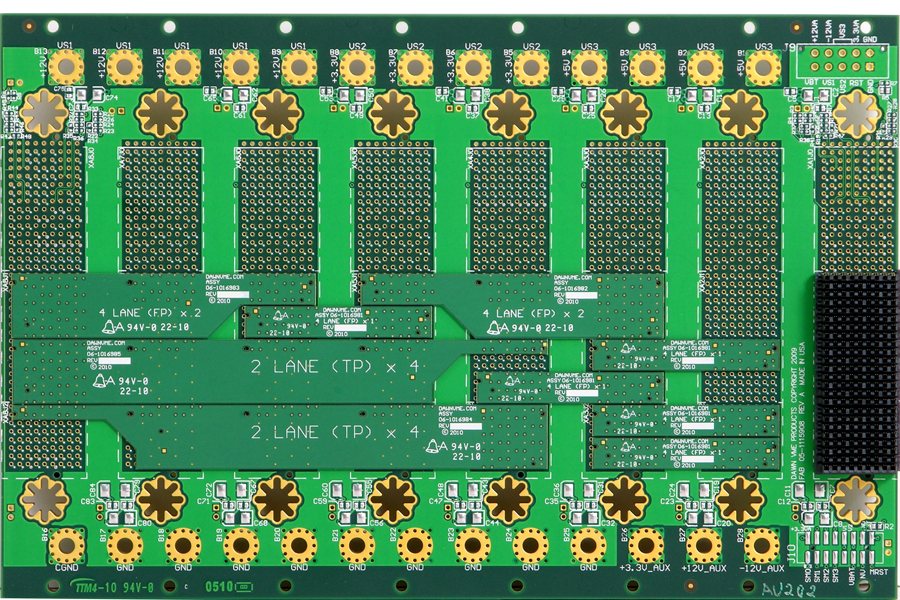

FMM Overlay Technology

VPX-7998

VPX-8805
VITA 67

VPX-6053
VME 64X/VPX

VPX-7135
PWR/GRD, IPMB, PCI Express Daisy Chain

VPX-7136
Utility Plane, PWR/GRD, IPMB, PCI Express Daisy Chain

Data Plane and Control Plane both switched.

VPX-7407
VPX-Utility Plane, PWR/GRD, IPMB, PCI Express Daisy Chain

Data Plane is distributed whereas the Control Plane is switched.

VPX-6216
6U VME64X on VPX for VPX boards mapped to VME64X

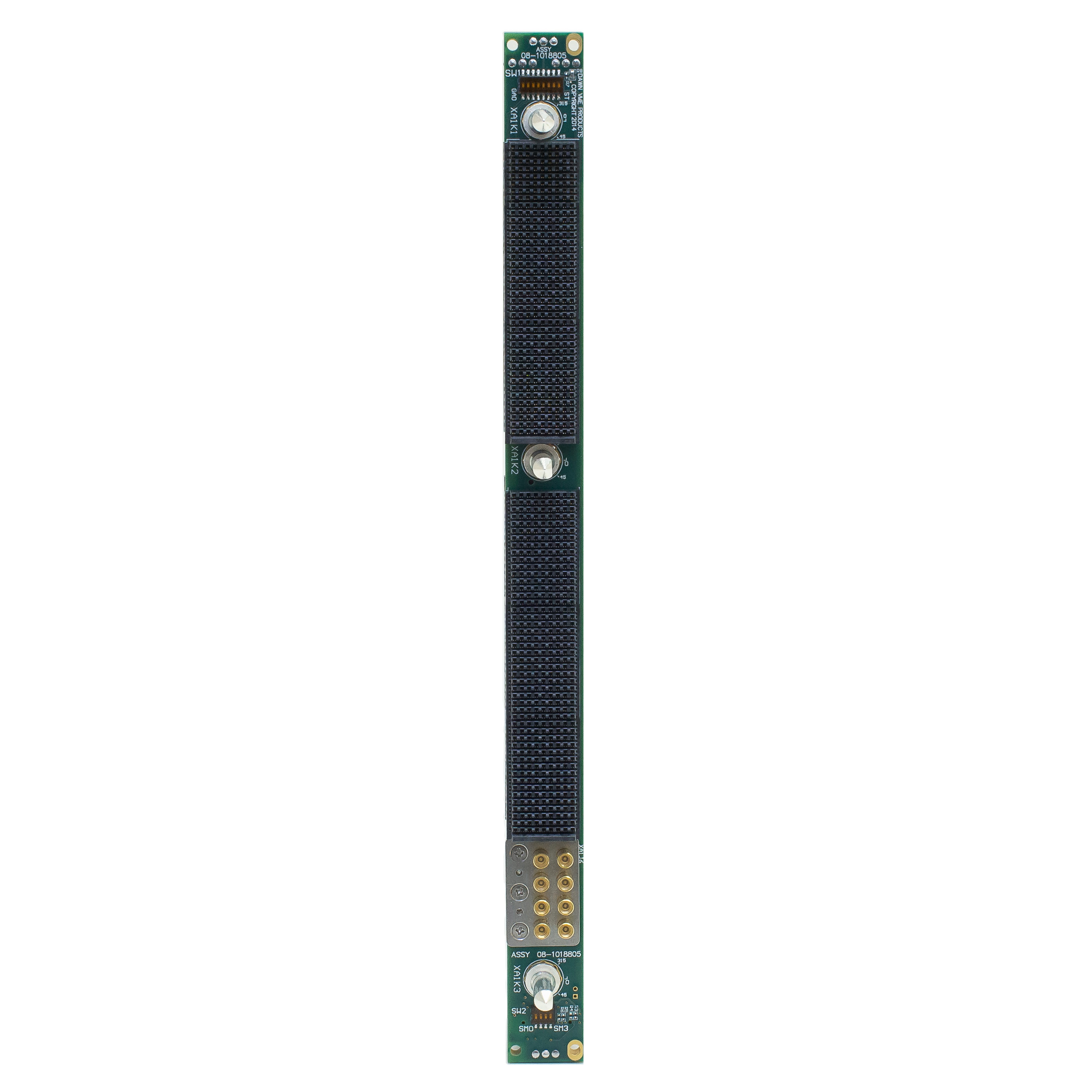

6U VPX-9909
Single Slot VITA 67.3, J3 & J6
