VPX and cPCI Accessories, Ethernet Conversion and Rear Transition Modules, Extender Cards and Boards, Slot Load and Bypass Boards, Prototyping and Adapter Boards, Front and Filler Panels. Custom applications available.
VPX Accessories
A full line of accessories for the VPX marketplace based on the various VITA Standards for VPX, offering unique and innovative features.
Ethernet Conversion Modules
10G-KR/KX/SGMII to 10G/1G-BASE-T Conversion Module. Convert Backplane SERDES interfaces (KR/KX/SGMII/USXGMII/) to 10G/1000/100 BASE-T for External Chassis interface.
Transition Module Extender Cards
Extension of VME64x RTM boards from rear of backplane. Some systems have obstructions such as power supplies behind J1 which prevents direct insertion of RTM’s.
Test Extender Boards
3U, 6U and 9U VMEbus, VME64x and Universal testing applications test and form factor extender boards. Excellent power and ground distribution
Slot Load Boards
Dawn invented the slot load board (US Patent 5,157,326) to provide all necessary features to conduct thermal analysis, design validation and system characterization. Available in all standard bus architectures and custom.
Filler Panels
3U, 6U and 9U high quality filler panels in variety of widths. Standard, IEEE1101.10 versions and customization of standard panels. Alodine coated for maximum electrical conductivity and superior corrosion resistance. Complete with all required mounting hardware.
Overlays
Adds or expands VSBbus architecture for your host VMEbus architecture. Geographical addressing is user defined at each slot. Daisy-chain jumper option accessible from overlay rear.
P
ower Entry Modules
3U and 6U N+1 compatible 47-pin plug-in power supply power entry modules.
cPCI Accessories

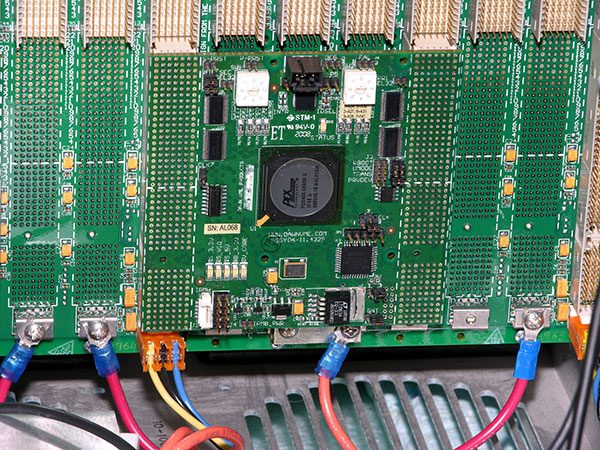

cPCI Bridge 64 bit & 32 bit. cPCI extended backplane 18-21 slots.
Rear Transition Modules
Universal 6U or 3U VPX Rear Transition Modules, Micro 6U VPX Rear Transition Modules, custom designed Rear Transition Modules.
6U Extender Boards
6U VMEbus and VME64 extension standards extender boards are primarily used to adapt the depth of a 6U board to fit into a deeper-sized card cage.
Prototyping Boards
3U and 6U VME, VME64x and CompactPCI prototyping boards. 0.1″ pin grid arrays allow for easy and efficient testing of your active components.
Slot Bypass Boards
6U VME and VME64x slot bypass boards provides jumpering for BG/IACK signals through P1. Excellent way to fill empty system slots. Air flow management can also be improved.
Front Panels
3U, 6U and 9U high quality front panels in variety of widths. Standard, IEEE1101.10 versions and customization of standard panels. Alodine coated for maximum electrical conductivity and superior corrosion resistance. Complete with all required mounting hardware.
Power Busbars
Dawn’s busbar sets are designed to reduce assemble time connecting +5V, +3.3V and GND to backplanes by allowing the use of one or more large wire cables rather than multiple smaller ones.
